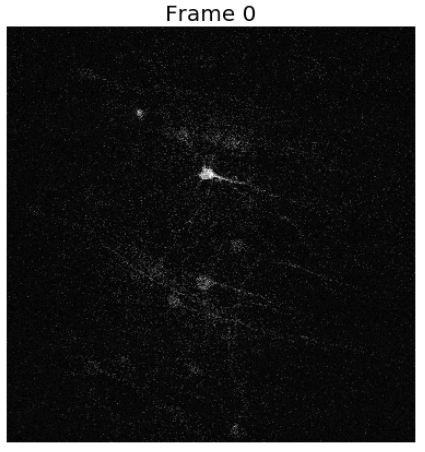

Here’s a picture of a single frame. You can see a few neurons activating (grouped white pixels):

frame_image_

To get a better sense of the data going into downstream analysis, I take data with the dimensions (y_pixel, x_pixel, samples) and perform the following preprocessing: 1) Flatten the first two dimensions - y and x dimensions in y_x 2) Load the behavioral data (ie. stimulus onset times) 3) Calculate a vector of samples that encompass a trial’s window 4) Make a matrix of those sample vectors across trials and extract fluorescence data using those sample indices 5) Average across trials to get a matrix of (pixels, trial_samples)

Here I use sklearn’s PCA to reduce the dimensionality of trial-averaged data. Since my data are in xarray format, I have to import a library called sklearn-xarray, which possesses a wrapper function that facilitates the compatibility of the PCA object with xarray data:

from sklearn_xarray import wrap
from sklearn.decomposition import PCA

pca_xr_wrapper = wrap(PCA(n_components=3), reshapes='yx') # create PCA object and specify dimension to perform PCA on

Xt = pca_xr_wrapper.fit_transform(xr_flatten_pix_trial.transpose()) # fit/transform estimator; transpose to apply PCA on pixels

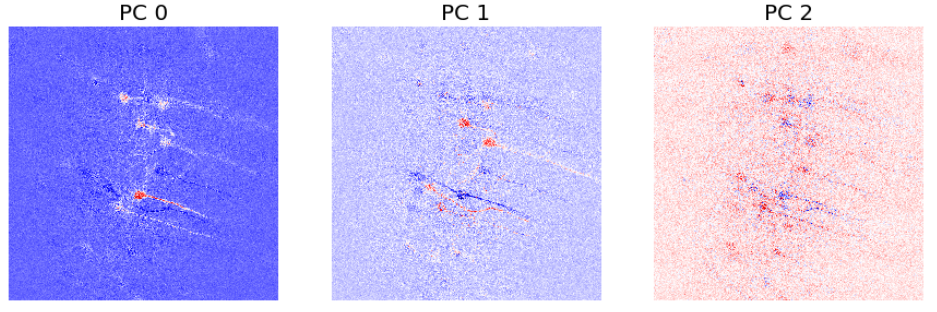

Below I plot the eigenvectors reshaped into a spatial format. Each PC’s spatial map indicates how much each original pixel in the dataset contributes to the PC. Note that PC 0 and 1 possess positive pixels that group to form neurons, meaning PCA is pulling out biologically relevant neural activity and neurons.

PC_pixel_map

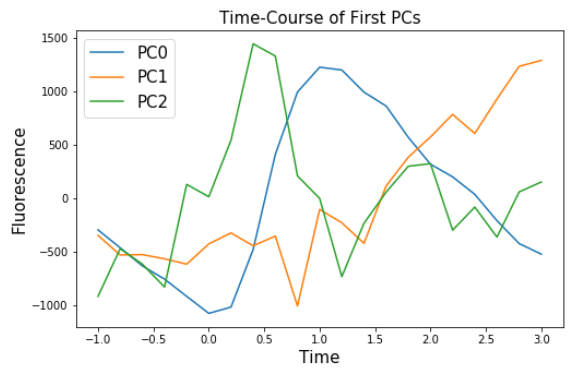

Here I’m showing each PCs timecourse (ie. samples in PC space). Indeed these PCs may reflect biological fluctuations. PC0 shows a characteristic calcium indicator rise and decay starting about 250 ms after stimulus onset, whereas PC2 shows perhaps an anticipatory increase. PC1, I’m not entirely sure about, but may be some consumatory reward behavior. Since PCs are composed of a linear combination of features that can be negative or positive, it can be tough to interpret what the PCs mean.

PC_timecourse!!
